GE Voluson E8 Voluson E10 EC320 ultrasound machine repair RFM423 beamformer board) Artifact Imaging or no echo (KTZ304074 / 5729200 / KTZ304142)

The GE Voluson RFM423 beamformer board is a critical front-end signal processing module used in GE Voluson E8 and Voluson E10 ultrasound systems (BT15–BT21 platforms). It is responsible for high-speed ultrasound signal transmission, reception, beamforming, and RF data conversion, directly affecting image clarity, spatial resolution, and overall system performance.

This board works in conjunction with the transducer and system back-end to generate real-time 2D/3D/4D imaging. Any malfunction in the RFM423 can immediately impact image formation and result in severe diagnostic failure.

Common Fault Symptoms We Repair

Our professional repair service covers full component-level troubleshooting and restoration for typical RFM423 failures, including:

• White screen / blank screen on startup

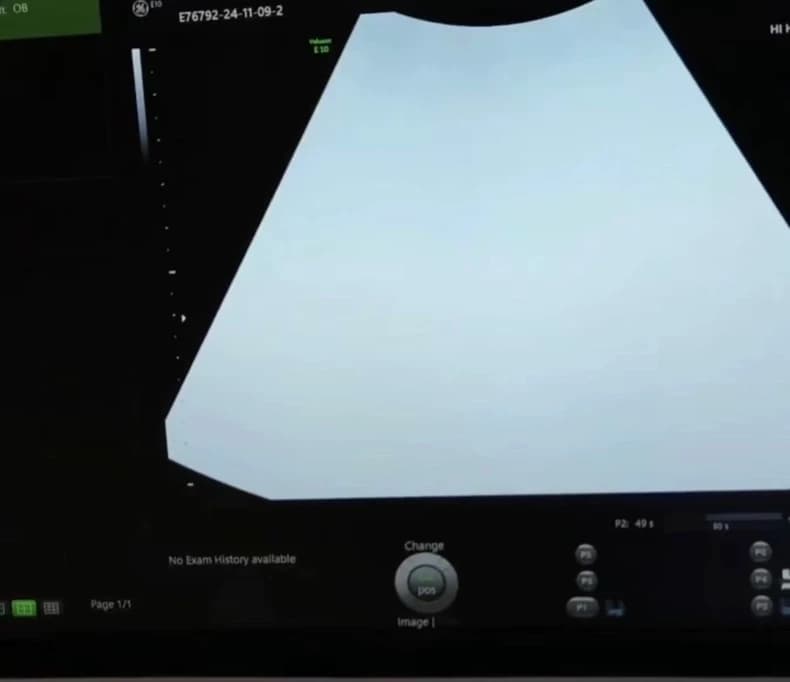

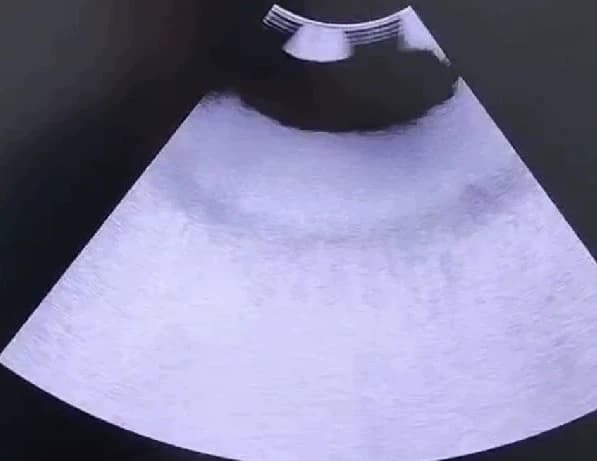

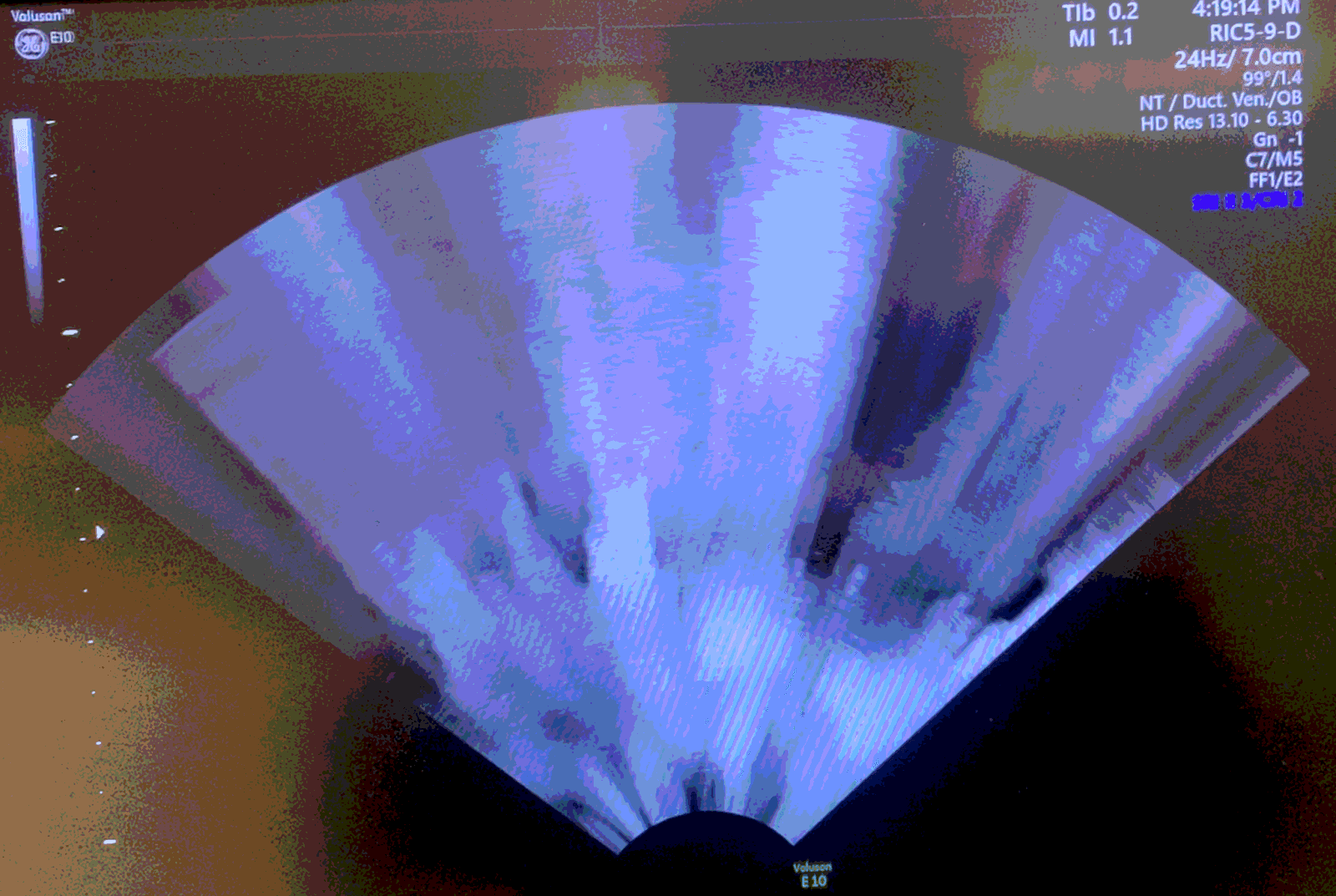

• Severe artifact imaging (streaks, noise, full-frame distortion)

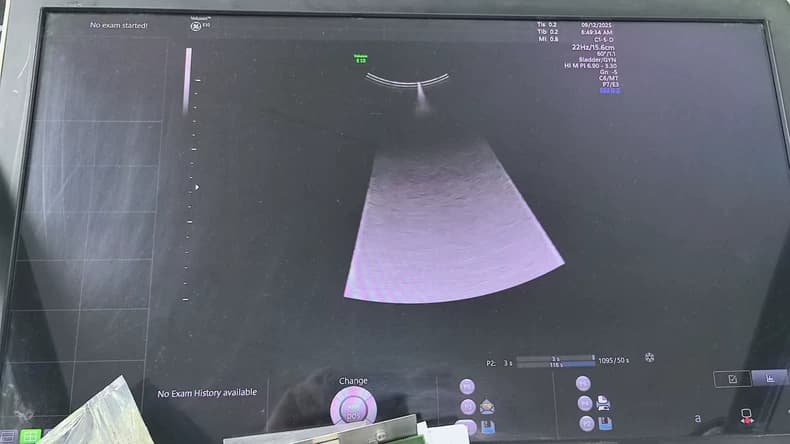

• No echo / no image formation from probe

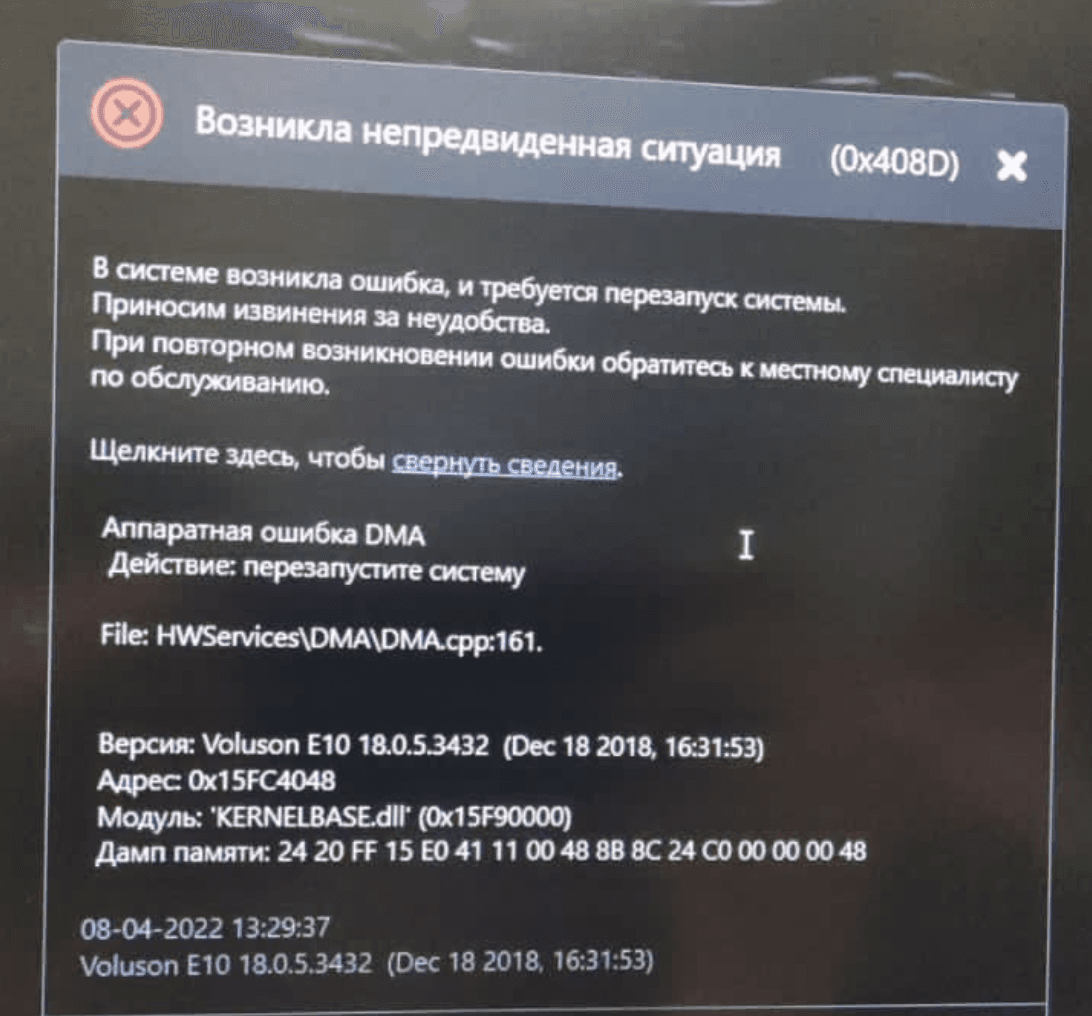

• System boot error or ultrasound mode failure
• Power management related faults (unstable boot / reboot loop / voltage error)
• Loss of beamforming signal or RF data corruption

These issues are commonly associated with:

• Beamformer IC failure
• RF signal processing chain damage
• Power regulation instability on front-end board
• Data transmission errors between RFM and system controller
• Component aging or moisture/thermal damage

Technical Background (RFM423 Function Overview)

The RFM423 module is the core front-end beamforming unit in Voluson systems. It performs:

• Multi-channel RF signal reception from ultrasound probes
• Dynamic beamforming for image reconstruction
• Digital signal conversion and preprocessing
• Synchronization with system back-end processing units

Failure of this board typically results in complete loss of ultrasound imaging or severe artifact distortion, even when the system powers on normally.

Supported Models

• GE Voluson E8 (BT versions)
• GE Voluson E10 (BT17–BT21 platforms)
• Compatible systems using RFM423 / KTZ304074 / 5729200 architecture

Our Professional Repair Service Includes

• Full diagnostic testing of RFM423 beamformer board
• RF signal path analysis and fault isolation
• Component-level repair (ICs, power rails, signal lines)
• Memory / firmware-related troubleshooting (if applicable)
• High-precision calibration after repair
• Full system-level image verification testing

Quality Assurance

• 100% functional testing on real ultrasound systems before delivery
• Image performance verification (2D/3D/4D modes)
• Stability test under long-run operation
• Cleaned, inspected, and professionally packaged

Service Terms

• Turnaround time: 2–5 working days (typical faults)
• Warranty: 60 days after repair
• Service type: Professional board-level repair (not replacement unless requested)
• Shipping: Worldwide service available

Why Choose Us

We specialize in GE Voluson ultrasound electronic board repair, focusing on high-value beamformer and RF processing modules. Our service helps hospitals, dealers, and engineers significantly reduce replacement costs while restoring original imaging performance.
