Hitachi ARIETTA 60 RDBF Board Repair Service (EP576200 – Image Noise / Artifact / Abnormal Imaging)
Public supplier signals are visible here. Send an inquiry when the listing looks commercially fit.
Product Details

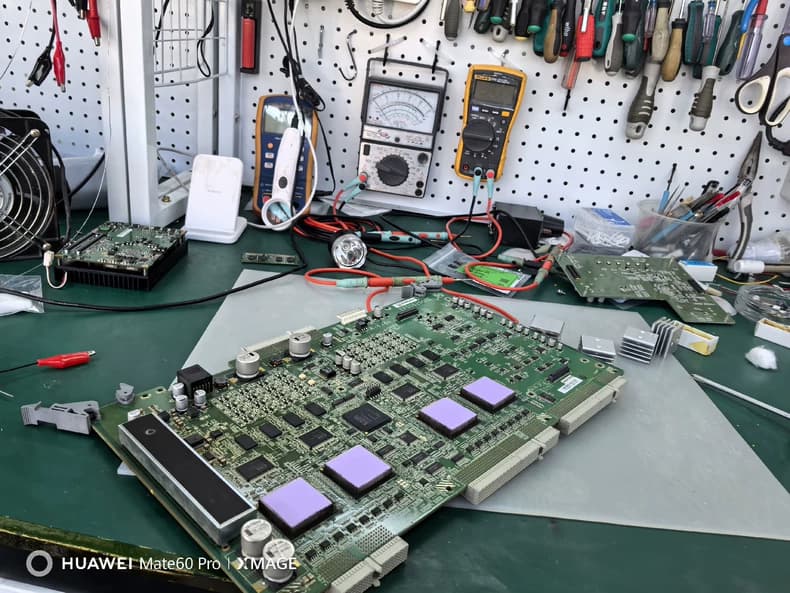

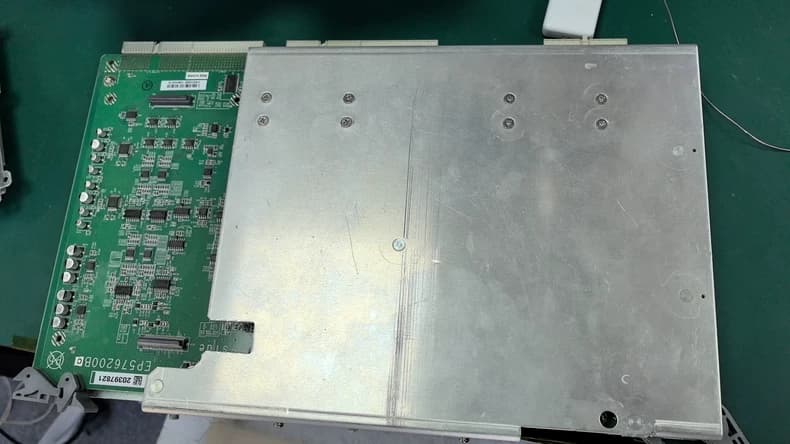

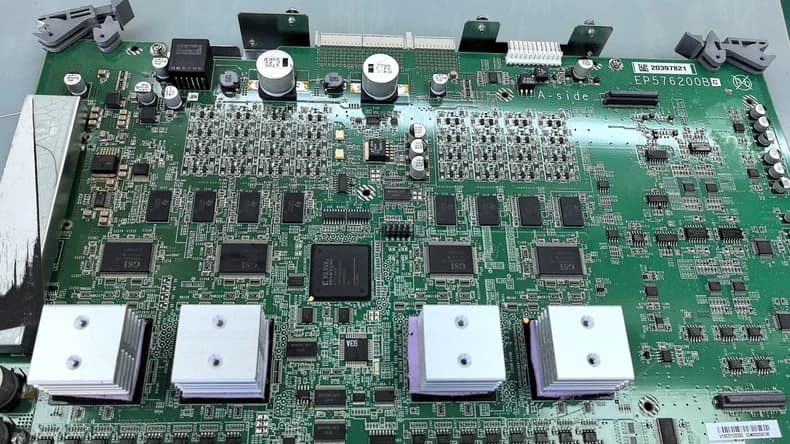

The Hitachi ARIETTA 60 ultrasound system uses the RDBF (Receive Digital Beamformer) board (P/N: EP576200) as a key front-end signal processing module. This board is responsible for receiving RF echo signals from the probe and performing digital beamforming before image reconstruction.
Failures of the RDBF board directly affect ultrasound image quality and signal stability.
Common Fault Symptoms
- Severe image interference or electronic noise
- Image artifacts (streaks, distortion, shadowing)
- Abnormal or unstable ultrasound image
- Partial image loss or missing scan lines
- Weak or distorted echo signals
- Fluctuating brightness or inconsistent imaging
Technical Overview
The RDBF board is responsible for:
- RF echo signal acquisition from probes
- Digital beamforming preprocessing
- Signal timing and channel synchronization
- Data transfer to backend image processor (BE system)
Any failure in this stage results in signal corruption and visible imaging defects.
Common Root Causes
- Beamformer IC / FPGA failure
- RF channel signal degradation
- Power instability on analog/digital rails
- BGA solder fatigue due to thermal cycling
- High-speed data processing error on RDBF
- EMI or grounding interference affecting signal integrity
Supported Model
- Hitachi ARIETTA 60
- RDBF Board P/N: EP576200
Repair Service Includes
- Full diagnostic testing of RDBF board
- RF signal path and beamforming analysis
- FPGA / IC-level repair or replacement
- BGA rework and solder restoration
- Noise / artifact elimination verification
- Final image quality testing on real ultrasound system
Service Terms
- Turnaround time: 2–5 working days
- Warranty: 60 days
- Service type: Component-level electronic repair (not full replacement unless required)
- Worldwide service available
Why Choose Us
We specialize in Hitachi ARIETTA ultrasound beamformer board repair, restoring image quality and signal stability for EP576200 RDBF-related failures as a cost-effective alternative to OEM replacement.
