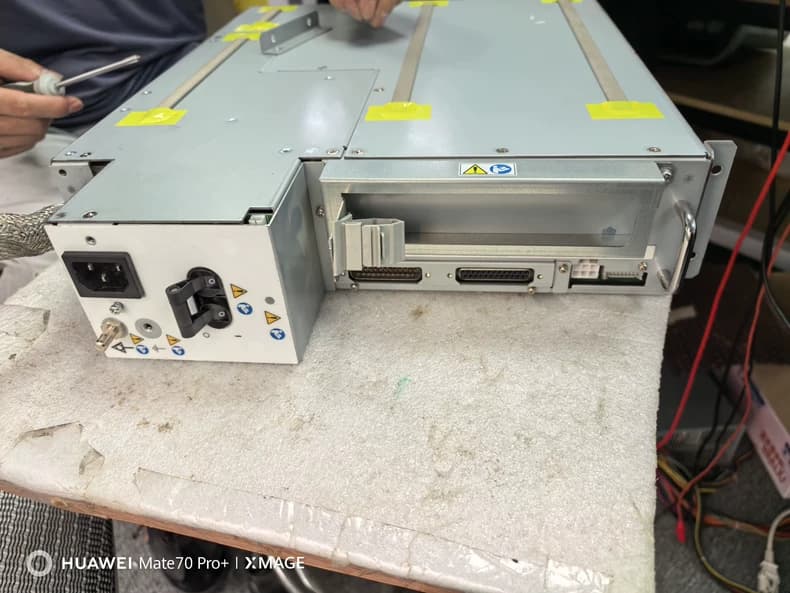

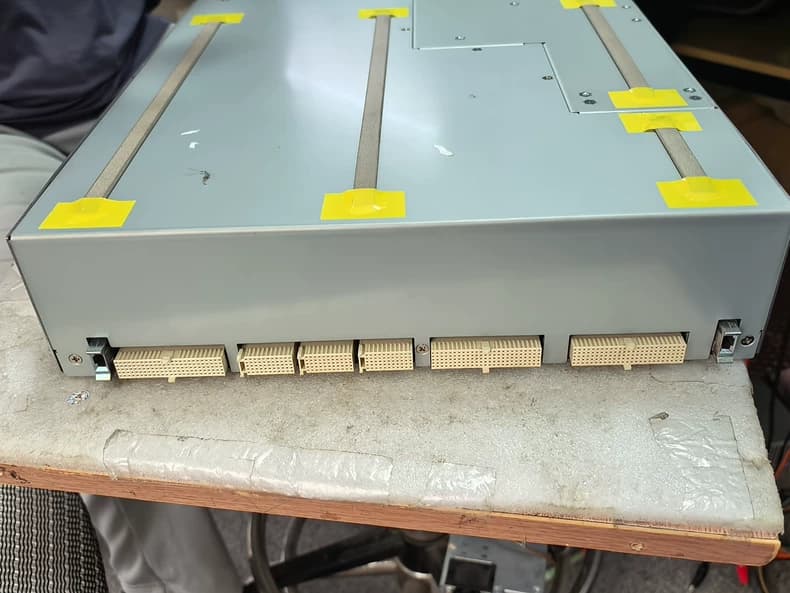

Canon Toshiba Aplio i700 / i800 / i900 Power Supply Board Repair Service (No Power / Boot Failure / Random Shutdown / Multi-System Error / Image Instability)

The Canon Toshiba Aplio i700, i800, and i900 ultrasound systems are high-end diagnostic imaging platforms widely used in radiology and cardiology departments. These systems rely on a complex multi-rail power supply architecture, including AC-DC conversion, DC-DC regulation, analog power rails, and high-voltage transmission power for ultrasound signal generation.

A failure in the power supply system can affect multiple subsystems simultaneously, leading to unstable operation or complete system failure.

Common Fault Symptoms We Repair

Our professional power board repair service covers all typical Aplio i-series power-related failures, including:

• No power / completely dead system
• Standby power present but system does not boot
• Repeated reboot / boot loop failure
• Cold start failure (requires multiple attempts to power on)
• Sudden shutdown during operation
• System instability under load
• Random multi-board errors during startup or scanning
• Intermittent operation failure

Power-Related Error Messages (Common in Field Cases)

Power supply instability often triggers misleading system errors, such as:

• “Hardware data transfer is busy”
• “Cine memory is cleared”
• RX / TX communication errors
• Probe not recognized errors
• System initialization failure
• Multi-module startup failure

📌 These errors are often NOT caused by the individual boards themselves, but by unstable system power rails affecting communication across modules.

Image and System Symptoms Caused by Power Failure

• Image artifacts (noise, distortion, streaks)
• Unstable or frozen ultrasound image
• Sudden image loss during scanning
• Black screen while system appears to be running
• Random system hang or reset

Technical Overview (Power System Structure)

The Aplio i-series power system includes:

• AC-DC main power supply unit (PSU)
• Multi-output DC-DC converters (5V / 12V / 3.3V / 1.2V rails)
• Analog power rails (±5V / ±12V)
• High-voltage TX power section for probe excitation
• System power distribution network to CPU, RX, TX, and UI modules

Any instability in these power rails can cause multi-system communication failure and imaging distortion.

Common Root Causes

• Aging electrolytic capacitors causing voltage ripple
• DC-DC converter failure or unstable output
• Power rail short circuit or overload protection trigger
• PSU degradation under thermal stress
• High-voltage TX power instability
• Main power board IC failure
• Solder joint fatigue (thermal cycling damage)
• Power sequencing failure during system startup

Supported Models

• Canon Toshiba Aplio i700
• Canon Toshiba Aplio i800
• Canon Toshiba Aplio i900
• Aplio i-series high-end ultrasound platforms

Our Repair Service Includes

• Full diagnostic testing of power supply modules
• AC-DC and DC-DC voltage rail analysis
• Component-level repair (ICs, capacitors, power regulators)
• High-voltage section inspection and repair
• Power sequencing stability verification
• Load testing under real ultrasound operating conditions
• Full system boot and imaging stability testing

Quality Assurance

• Multiple cold and hot start tests
• Continuous operation stability testing
• Full system load verification
• Multi-mode ultrasound function testing
• Final inspection and professional packaging

Service Terms

• Turnaround time: 2–5 working days
• Warranty: 60 days after repair
• Service type: Component-level professional repair (not full replacement unless required)
• Worldwide service available

Why Choose Us

We specialize in Canon Toshiba Aplio ultrasound system electronic repair, focusing on power supply units, DC-DC converters, and system stability faults. Our service provides a cost-effective alternative to OEM replacement while restoring full system performance and reliability.
