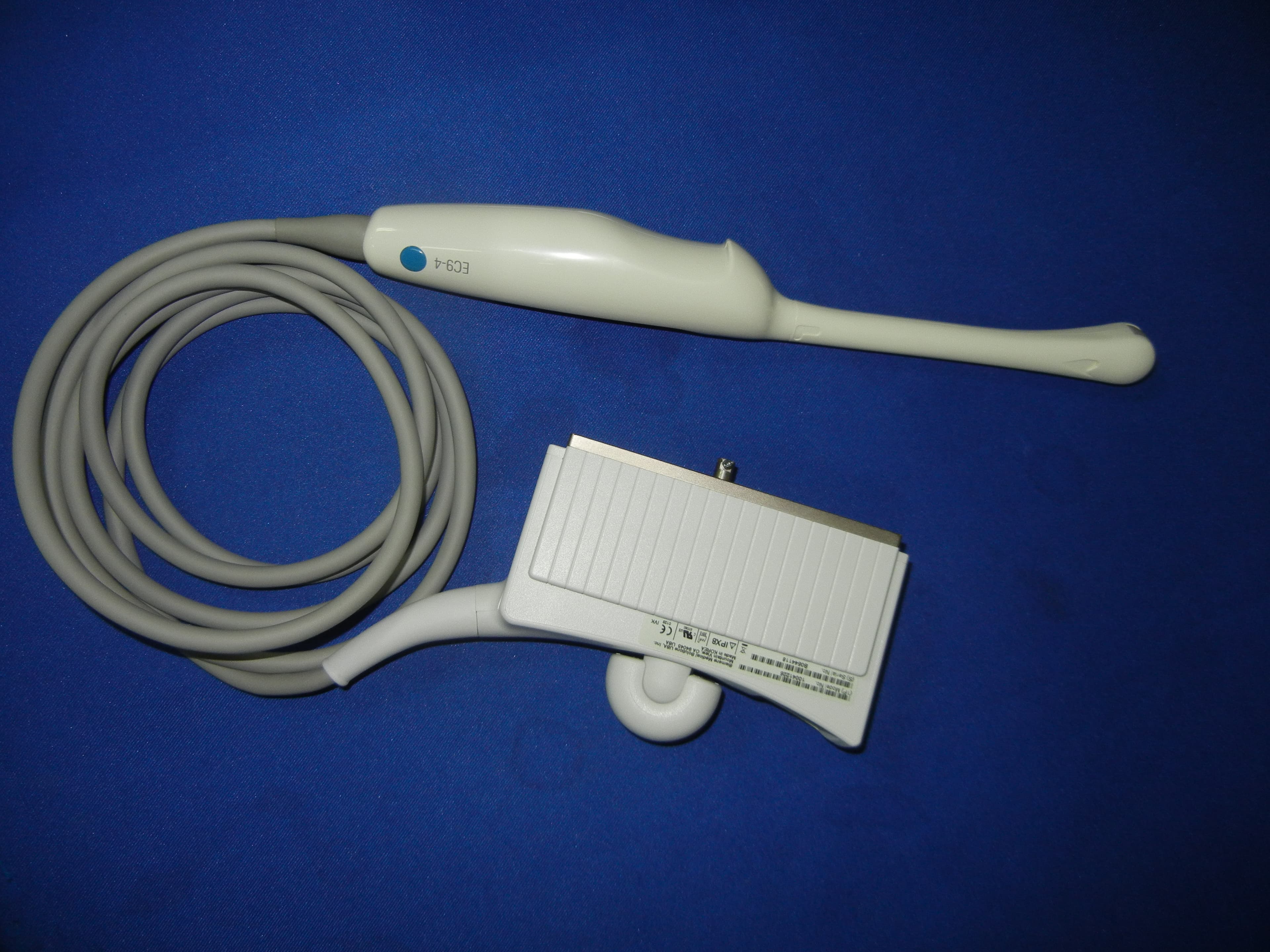

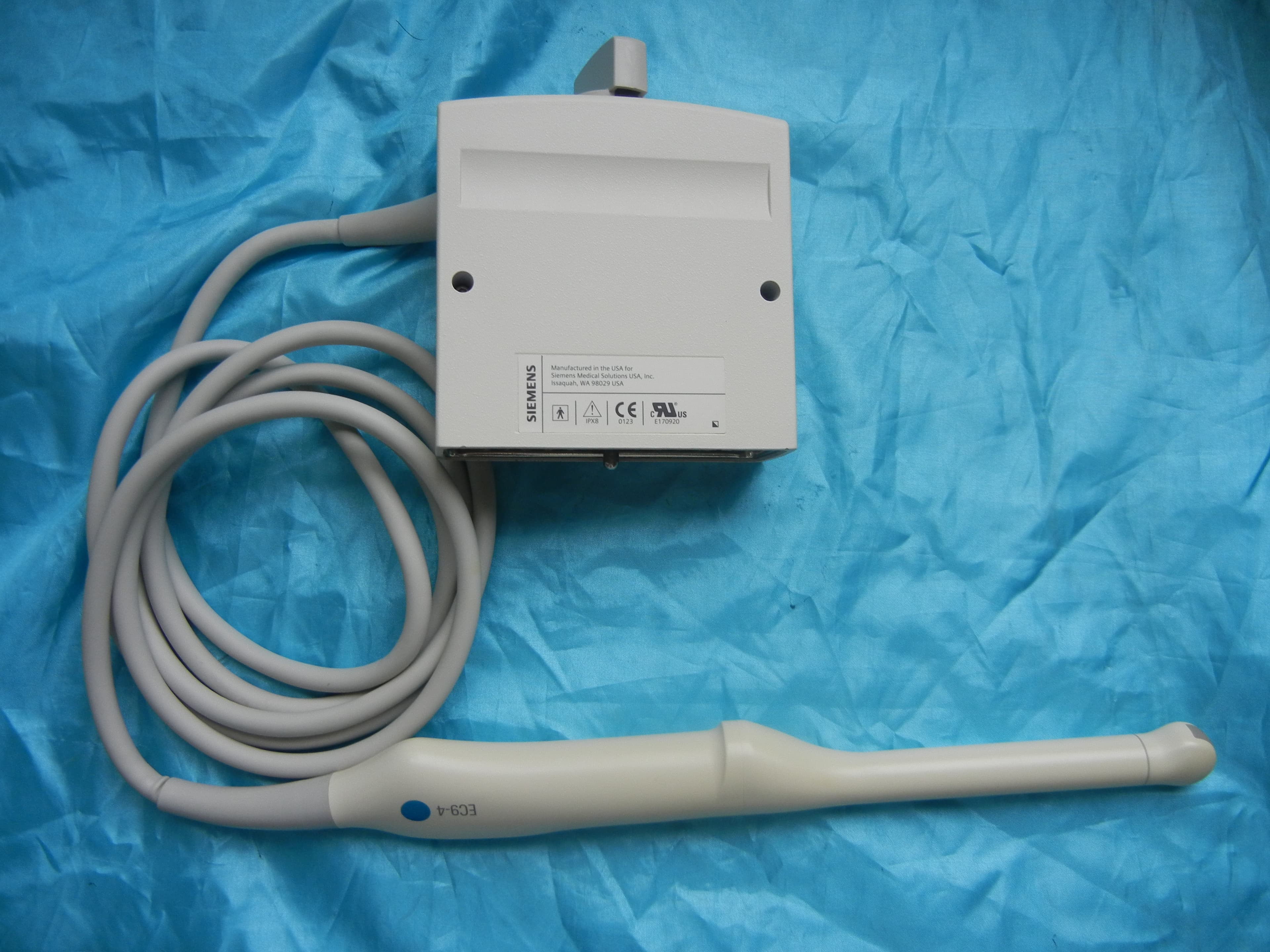

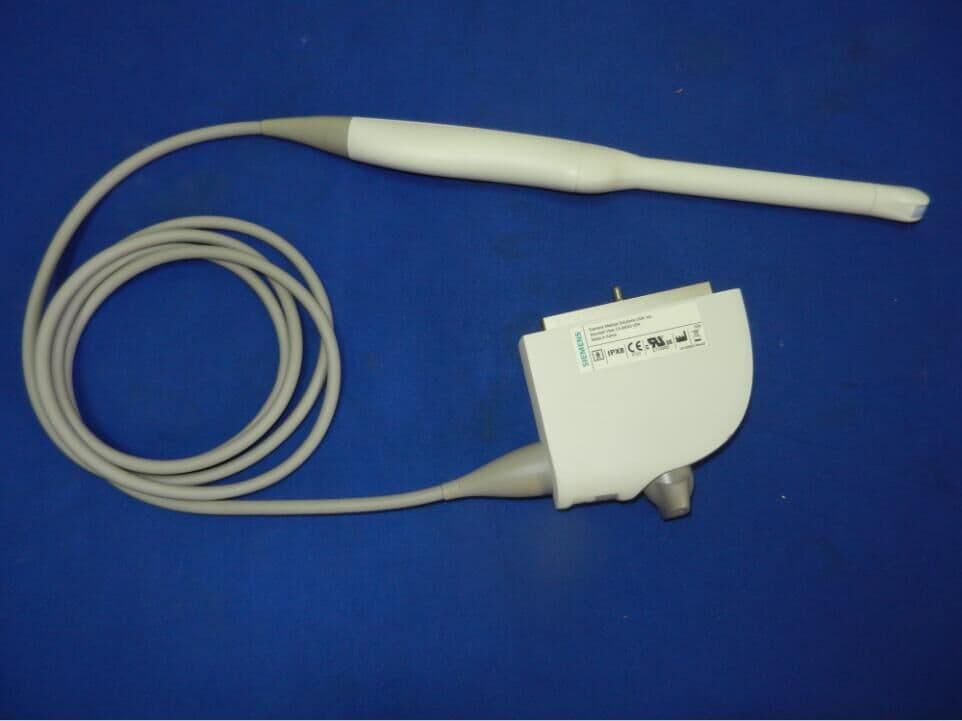

Siemens Acuson EC9-4 Endocavitary Probe

9-4 MHz Endocavity Transducer for Early OB, OB/GYN, Urology

Transducer Details:

• Frequency Bandwidth: 2.9 – 9.8 MHz
• Selectable 2D Frequencies: 5.0, 6.7, 8.0 MHz
• Selectable THI Frequencies: 2.9, 3.3 MHz
• Selectable Color Doppler Frequencies: 4.0, 5.3 MHz
• Selectable PW Doppler Frequencies: 4.0, 5.3 MHz
• Number of Elements: 128
• Footprint: 26.2 mm
• Maximum Field of View: 126°
• Maximum Display Depth: 140 mm
• Biopsy Guide: Disposable Needle Guide Set, PN 10041823
• Biopsy Guide Angles: 2°

Design Attributes:

• User-selectable MultiHertz imaging
• Ergonomically designed form factor
• Lightweight transducer with flexible cable

Applications:

• Early OB
• OB/GYN
• Urology

Compatible Systems:

• ACUSON X300 ultrasound system
• ACUSON X150 ultrasound system
• SONOLINE G40 ultrasound system
