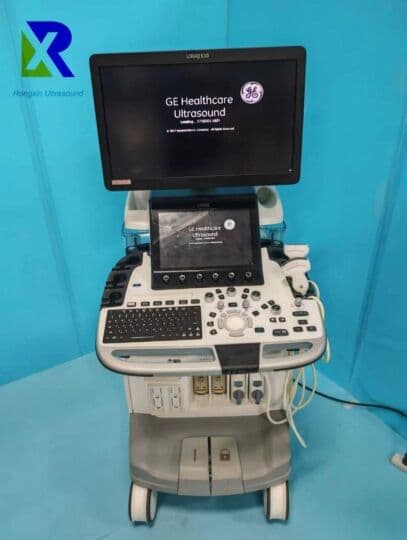

GE Logiq E10

Key Features

• B-Flow™ imaging: This non-Doppler technique enables direct, real-time visualization of blood flow echoes with no vessel wall overlap to obscure details.
• B-Flow Capture with Reconstruction: Provides a three dimensionalview of blood vessels in which artifacts areautomatically suppressed and weak vessel signals enhanced
• B-Steer+: Enhances needle visualization in real time to improvespeed and confidence in needle guidance procedures.
• Contrast Enhanced Imaging (CEUS): Optimizes the balance between penetration and resolution for improved contrastsensitivity, enhancing the ability to detect and characterize lesions.
• 2D Shear Wave Elastography: Two-dimensional shear wave elastography enables quantitative assessment of tissue elasticity. Strain Elastography is also available for qualitative tissue assessment.
• Volume Navigation: The combination of 2D/3D GPS Tracking and Fusion Imaging can make a real difference in accuracy –potentially reducing procedure time and patient stress.
• Fusion Imaging: Merge real-time ultrasound with a volume DICOM® MR dataset to facilitate a second look examination and fusion guidance of biopsies of masses seen on MRI but not on ultrasound.
• 2D/3D GPS Tracking: Visually track position during a scan using GPS-like technology, and mark selected points of interest to save time and enhance confidence.
• Photo Assistant App: A picture is worth a thousand words inreporting. Acquire and send photos of relevant anatomy –right from the device – to provide valuable context for documentation and comparison after a study. Photo Assistant with Compare Assistant lets you track and document changes between visual and sonogram.
• Compare Assistant: Enables clinicians to easily view a prior study –ultrasound, mammography, CT or MR –and current images together in real time via a split screen on the monitor, helping to improve confidence and exam efficiency.
• Cyber Threat Protection: SonoDefense helps protect your patients’ data, your institution and your reputation, by enabling you to successfully implement cyber security policies and still manage your daily workflow.

**Options vary on each systems

Dimensions

23′′ OLED widescreen display

• Height: 130 cm (51 in)
• Width: 58.5 cm (23 in)
• Depth: 99.1 cm (35.5 in)
• Weight: 136 kg (278 lb)

Compatible Probes

XDclear Convex Probes

• C1-6-D – XDclear Convex 1-6 MHz
• C1-6VN-D – XDclear Convex 1-6 MHz
• C2-9-D – XDclear Broad Spectrum Convex 2-9 MHz
• C2-9VN-D – XDclear Broad Spectrum Convex 2-9 MHz
• C3-10-D – XDclear Broad-spectrum convex 2-11 MHz

XDclear Linear Probes

• L2-9-D – XDclear Broad-spectrum linear (44mm) 2-9 MHz
• L2-9VN-D – XDclear Broad-spectrum linear (44mm) 2-9 MHz
• ML4-20-D – XDclear Broad Spectrum Linear Probe (50mm)  3-16 MHz
• ML4-20VN-D – XDclear Broad Spectrum Linear Probe (50mm) 3-16 MHz **Internal VNav Sensor – does not require a bracket

Linear Probes

• L8-18i-D – Hockey Stick (25mm) 4-15 MHz
• L6-24-D – Hockey Stick Broad Spectrum Linear (26mm) 6-20 MHz
• ML6-15-D – Matrix Linear (50mm) 4-15 MHz
• L3-12-D – Broad Spectrum Linear (51mm) 2-11 Mhz

Micro-Convex Probes

• C2-7-D Broad Spectrum Convex 1-6 MHz
• C2-7VN-D Broad Spectrum Convex 1-6 MHz

Intra-Cavitary Probe

IC5-9-D – Micro Convex Intra-cavitary 3-10 MHz

XDclear Sector

M5Sc-D – XDclear Broad-spectrum sector 1-5 MHz

Real Time 4D Probes

• RIC5-9-D – Broad-spectrum real-time 4D Intra-cavitary 3-10 MHz
• RAB6-D – Broad-spectrum real-time 4D Convex 2-8 MHz

Specialty Probes

• 6Tc-RS – TEE 2-8 MHz
• P2D Pedoff – Pencil Probe 2.0 MHz
