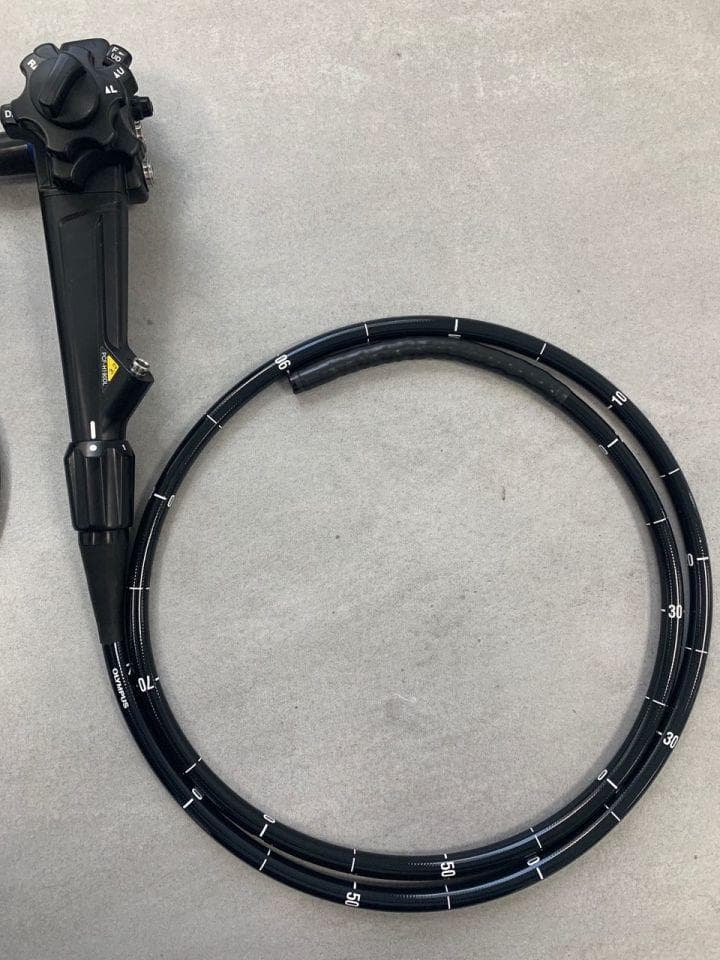

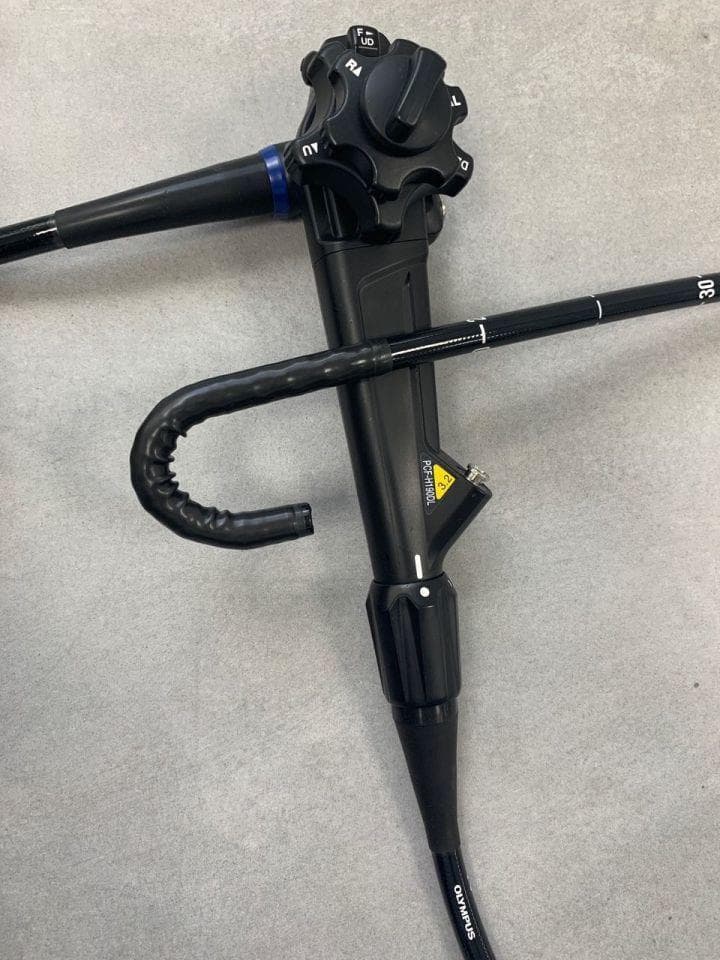

OLYMPUS PCF-H190DL EVIS EXERA III — Pediatric Video Colonoscope

The OLYMPUS PCF-H190DL is a pediatric video colonoscope from the EVIS EXERA III series, designed to provide exceptional handling and imaging capabilities for lower gastrointestinal procedures in smaller patients. Its slim design is complemented by advanced features that enhance both diagnostic yield and procedural efficiency.

This colonoscope incorporates several key Olympus technologies. Responsive Insertion Technology (RIT) combines a passive bending section with a high force transmission tube to facilitate smoother and more comfortable insertions. Imaging is enhanced with HDTV and Narrow Band Imaging (NBI), which improves the visualization of mucosal and vascular patterns. The PCF-H190DL is also compatible with ScopeGuide, providing a real-time 3D view of the endoscope's position and configuration within the colon.

• Field of View: 170°
• Direction of View: 0° (Forward)
• Depth of Field: 2-100 mm
• Distal End Outer Diameter: 11.7 mm
• Instrument Channel Diameter: 3.2 mm
• Working Length: 1680 mm
• Angulation: 180° Up/Down, 160° Right/Left
