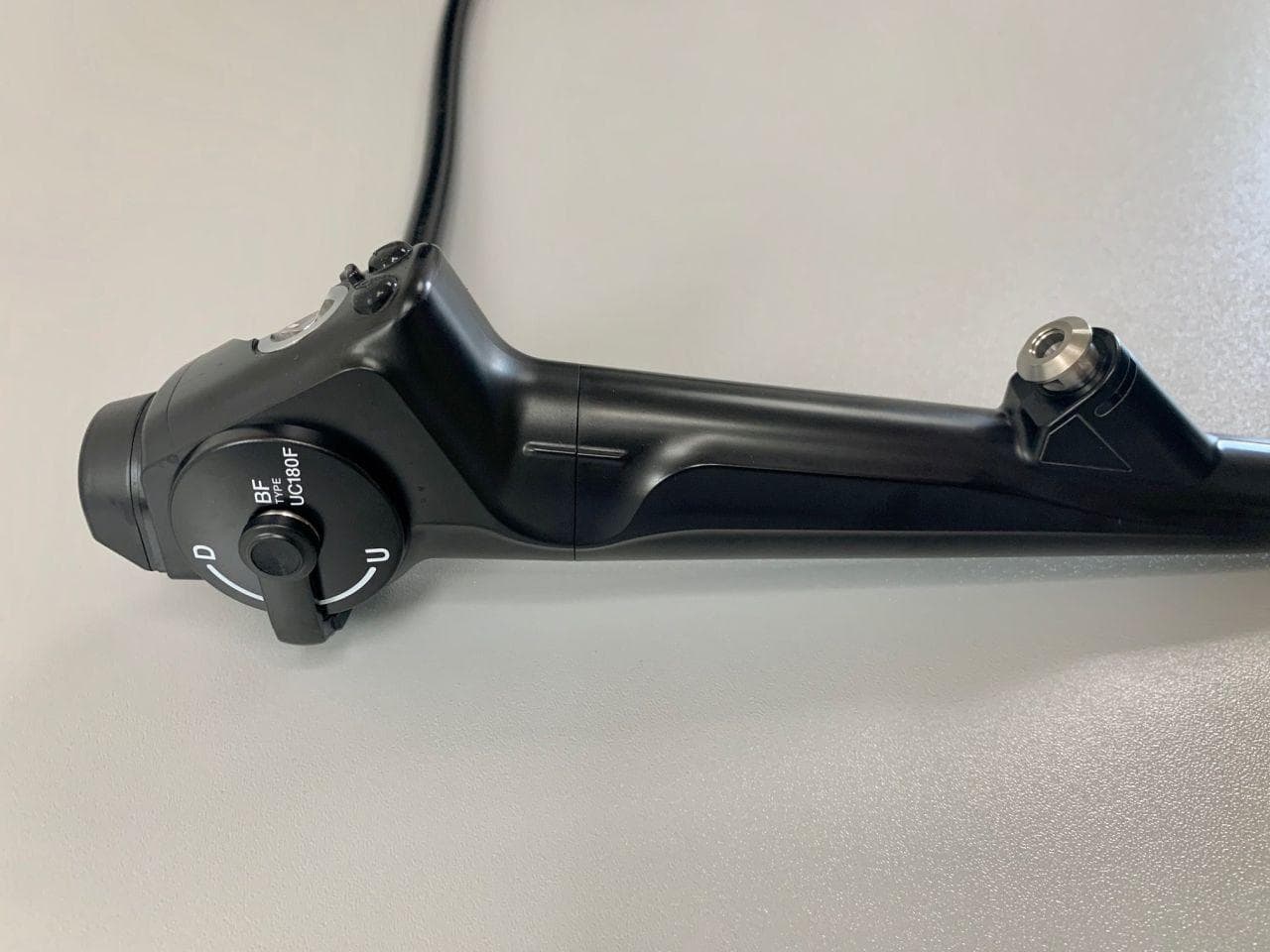

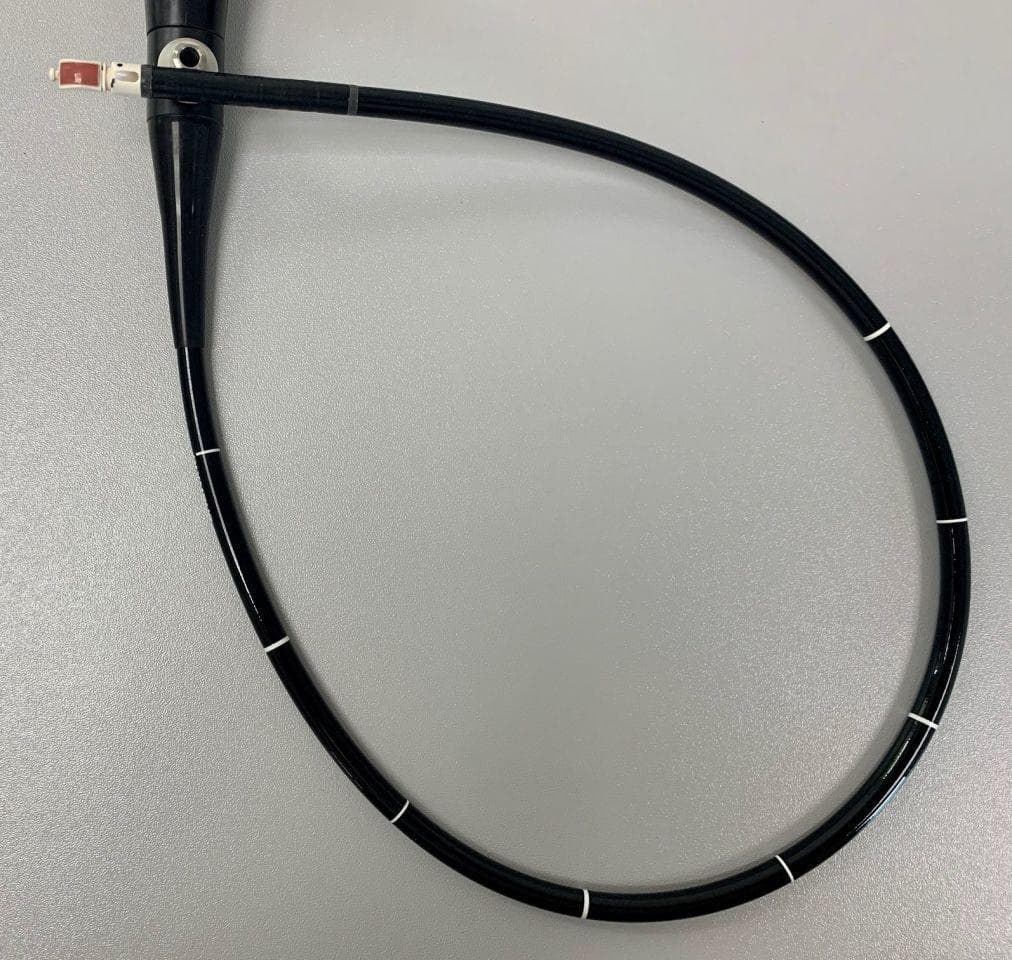

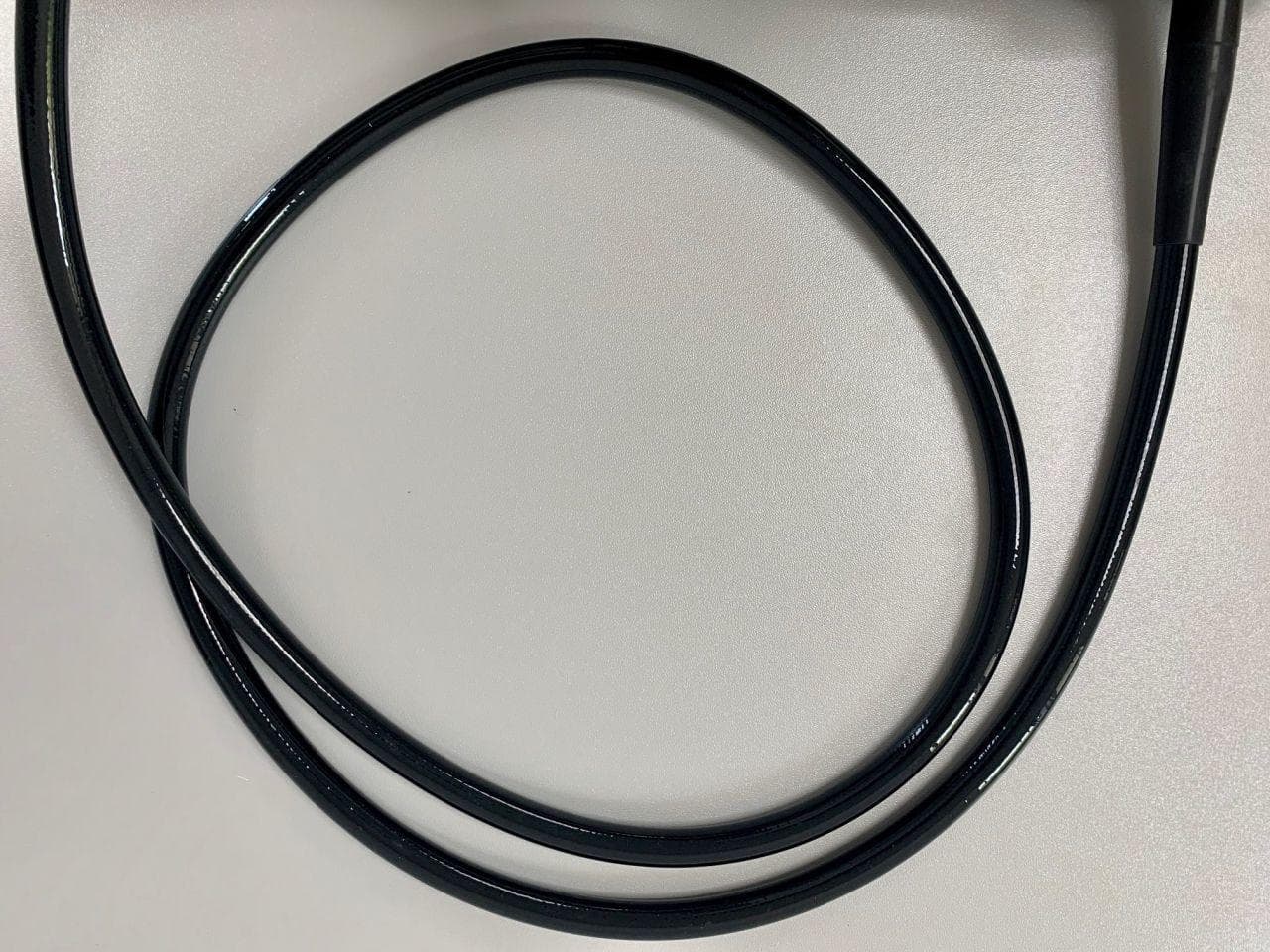

Olympus BF-UC180F EBUS Ultrasound Bronchoscope

The Olympus BF-UC180F is an advanced ultrasound bronchoscope designed for endobronchial ultrasound (EBUS) procedures. It combines high-quality bronchoscopic imaging with real-time ultrasound visualization, enabling precise and minimally invasive diagnosis and staging of lung diseases, particularly through Endobronchial Ultrasound-Guided Transbronchial Needle Aspiration (EBUS-TBNA).

This model features a linear scanning transducer that provides a 60-degree ultrasound scanning range, crucial for navigating and identifying structures within and adjacent to the airway walls. Its ergonomic design and responsive handling facilitate detailed examinations of the tracheobronchial tree.

• Ultrasound Transducer: Linear type with a 5 MHz frequency
• Field of View: 80°
• Insertion Tube Diameter: 6.2 mm
• Distal End Outer Diameter: 6.9 mm
• Angulation: 120° Up, 90° Down
• Depth of Field: 2-50 mm
